Channel Flatbed
Equipment Trailer

SELF STORE RAMPS
Self store ramps on 7k & 10k models with industry leading 26" wide, triple member, spring assist ramps on 14k models
6 PLY RADIAL TIRES
ST 205-75-R15 6 PLY RADIAL TIRES
SAFETY CHAINS
Removable Safety Chains w Weather Hangers
EZ STEP
EZ Step to deck for effortless payload access
2K A-FRAME JACK
2K A-FRAME JACK
4" WRAPPED CHANNEL
4" WRAPPED CHANNEL
FRONT BUMP RAIL
2 3/8" PIPE FRONT BUMP RAIL
#1 ACQ PRESSURE TREATED DECKING
#1 ACQ PRESSURE TREATED DECKING
84" DECK
84" DECK WIDTH BETWEEN FENDERS
JEEP STYLE FENDER WITH TEARDROP
12GA. TREADPLATE JEEP STYLE FENDER WITH TEARDROP FOR IMPROVED RIGIDITY.
SELF STORE RAMPS AND WOOD DOVE
2" WOOD DOVE AND HEAVY DUTY 5' - 5K SELF STORE RAMPS
LED LIGHTING
FLUSH MOUNT LED LIGHTING WITH LIFETIME WARRANTY
Channel Flatbed
Show Features?
Series
7000 lbs
  • 18′-20′
9800 lbs
  • 18′-20′
14000 lbs
  • 18′-20′

About the Trailer

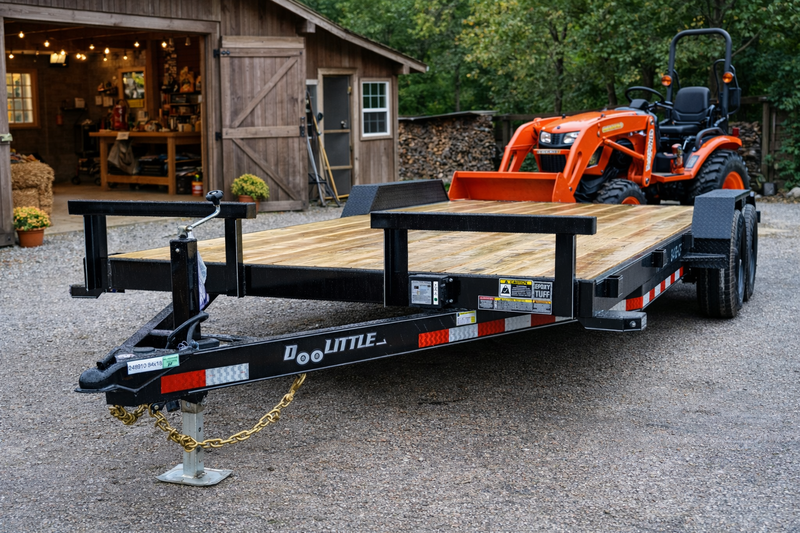

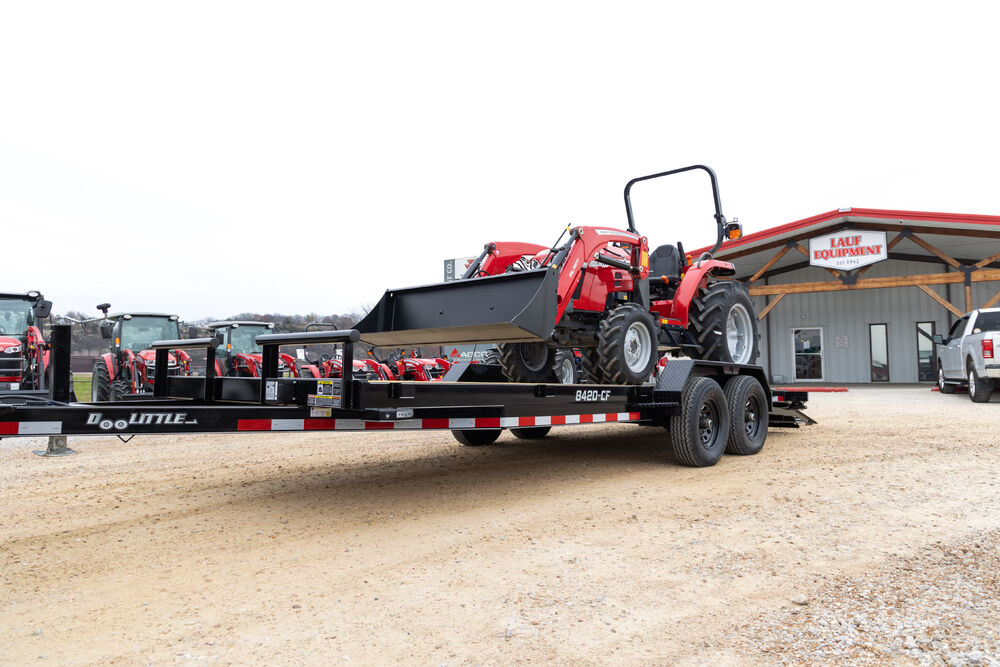

The Doolittle CF Series Trailers are light enough to haul your cars, utv's, and recreational craft, but heavy enough to haul your skid steers and excavators. The CF Trailers come with self store ramps on the 7k and 10k models and industry leading, triple member, 26" spring assist ramps on the 14k models.
Key Features
  • Wrap Tongue
  • 2′ Dovetail
  • EZ Lube Hubs
  • 1 Year Limited Warranty
Standard Features
  • Floorboards, 2” Treated Yellow Pine
  • Stake Pocket Tie Downs, 5 per Side
  • LED Lighting With Lifetime Warranty
  • 3" Structural Channels With 24” Crossmember Spacing (16″ on 14k)
  • Radial Tires
  • Ramps, 5’ Self Store w/ Rear Access (5′ Standup Ramps on 14k)
  • Heavy Duty Commercial Grade Slipper Spring Suspension
  • Heavy Duty Tread Plate Fenders With Tear Drop For Added Strength
  • Molded 7-Way RV Plug
  • 5" Wrap Tongue (6" on 14k)
  • 2′ Wood Dovetail
  • EZ Lube Hubs
  • Finish is a 2 Component Epoxy Primer and 2 Component Polyurethane Paint
  • LED Lights
  • Radial Tires
  • Zinc Cast Adjustable Coupler (on 10k and 14k)
  • Removable Safety Chains w Weather Hangers
Trailer Options
Expand Close All
  • Bed Length, per 2ft Extra
  • No Dove CF
  • No Dove Xtreme
  • No Dove No Ramps CF 7K
  • No Dove No Ramps Xtreme 7K
  • No Dove No Ramps CF 10K-14K
  • No Dove No Ramps Xtreme-10K-14K
  • Color, Gray
  • Color, Red
  • Coupler, Adjustable 2 5/16″ (STD on 14K Only)
  • Coupler, Bulldog A-Frame 2 5/16″ (7K or 10K Only)
  • Coupler, Bulldog Adjustable 2 5/16″ (7K and 10K Only)
  • Crossmembers, Each Additional
  • Crossmember Upgrade to 3″ Channel, Each
  • Heavy Duty D-Rings
  • Floor, Rough Cut Oak Upgrade per Ln Ft.
  • Floor, Steel Diamond Plate 1/8″ per Ln Ft.
  • Gooseneck (Includes Spare Tire & Carrier)
  • Jack Upgrade, (5K in lieu of 2K)
  • Jack Upgrade, Adjustable Dropleg (7K in lieu of 2K)
  • Jack Upgrade, Adjustable Dropleg (10K in lieu of 7k)
  • Lights, LED Upgrade
  • Plug, 6 Way
  • Ramps, 5′ Heavy Duty Spring Assist with Foot (7K Upgrade Only)
  • Ramps, Heavy Duty Self Store (10K & 14K Only, in lieu of Stand Up)
  • Rub Rail, 3/8″ with Additional Stake Pockets per Ln. ft.
  • 10″ Drive over Fenders 14K Only
  • Widen Deck to 102″ Front & Drive over Fenders Per Ln. Ft. (Includes Rub Rail)
  • 12″ Rail Front & Side (Per Ln. Ft.)
  • Each 1′ Additional Height on Rail (Per Ln. Ft.)
  • Heavy Duty Fenders (in lieu of Smooth Fenders)
  • 5′ Mech Gate 7K Only (in lieu of Smooth Fenders)
  • HD Split Mesh Gate 10 & 14K only (in lieu of Ramps)
  • Upgrade to HD Tread Plate Fenders on 7 & 10K
  • Tongue, per 1ft. longer
  • Winch 2500lbs of Cable Installed with Battery
  • Winch 5000lbs of Cable Installed with Battery
  • Winch 8000lbs of Cable Installed with Battery
  • Winch Plate
  • Wire, Heat Shrunk Connection
  • Tool Box on Tongue
  • Step To Deck Upgrade
  • 3500 Lb. Torsion Axle Upgrade (Per Axle)
  • 5200 Lb. Torsion Axle Upgrade (Per Axle)
  • 7000 Lb. Torsion Axle Upgrade (Per Axle)
  • 8000 Lb. Torsion Axle Upgrade (Per Axle)
  • Brake, Double Electric 7K
  • Brake, Double Electric 10K
  • Tri-Axle Upgrade (Upgrade Available on 14K Only-Includes 8″ Main Frame & 12″ o.c. Crossmembers)
  • Brake Surge 7K Single
  • Brake Surge 7K Double
  • Brake Surge 10K Single
  • Brake Surge 10K Double
  • Brake Surge 14K Double
  • Spare Tire ST205/75D-15″ with Wheel
  • Spare Tire ST205/75R-15″ with Wheel
  • Spare Tire ST225/75D-15″ with Wheel
  • Spare Tire ST225/75R-15″ with Wheel
  • Spare Tire ST235/80R-16″ with Wheel
Epoxy Tuff
TOUGHER THAN THE REST
Doolittle trailers are prepped with two-part Epoxy Primer and finished with two-part Polyurethane Paint, proven to be more durable than powder coat. This makes sure your Doolittle Trailer is durable enough to handle whatever you throw at it and tough enough to stand the test of time.
Request A Quote
Need pricing or have a question about this product? Reach out to us, and our phenomenal customer support team will be in touch shortly!
