Xtreme
Equipment Trailer
Stand Up Ramps
5' Xtreme Duty Needle Point 26" Wide Triple Beam Stand Up Ramps, EZ Lift Spring With 3rd member (On 14k Models)
Zinc Cast Coupler
6 Hole Adjustable Auto Latch With Zinc Cast Coupler
LED Lighting
Lifetime LED Flush Mount Lighting
Steel Tread plate Fender
Heavy Duty Steel Treadplate Double Broke Fenders with Tear Drop and Front and Rear Gussets for Added Strength
Slipper Spring Suspension
HD Commercial Grade Slipper Spring Suspension (on 14k Models)
Pressure Treated Decking
Pressure Treated Decking
Fully Wrapped Tongue
Fully Wrapped Tongue with Step To Deck
Stake Pockets & Rub Rail
16" O.C. Stake Pockets & Rub Rail
Double Screwed Flooring
Floor Double-screwed every 4 ft
EZ Steps
2 EX Steps for Easy Access
D Rings
4 Heavy Duty 5k D Rings
Safety Chains
Removable Safety Chains w Weather Hangers
Tool Box
Flush Mount Tool Box with Greaseable Hinges
Spring Loaded Jack
Removeable 12k Spring-Loaded Jack with Extended Handle
Gel Caps
3M Gel Caps on All Wiring Connections
Show Features?
Media
Series
84' Wide 7,000 lbs GVWR
- 18' - 22'
84' wide 9,990lbs. GVWR
- 18' - 24'
82' Wide 14,000lbs GVWR
- 18' - 34'
Color Options
About the Trailer

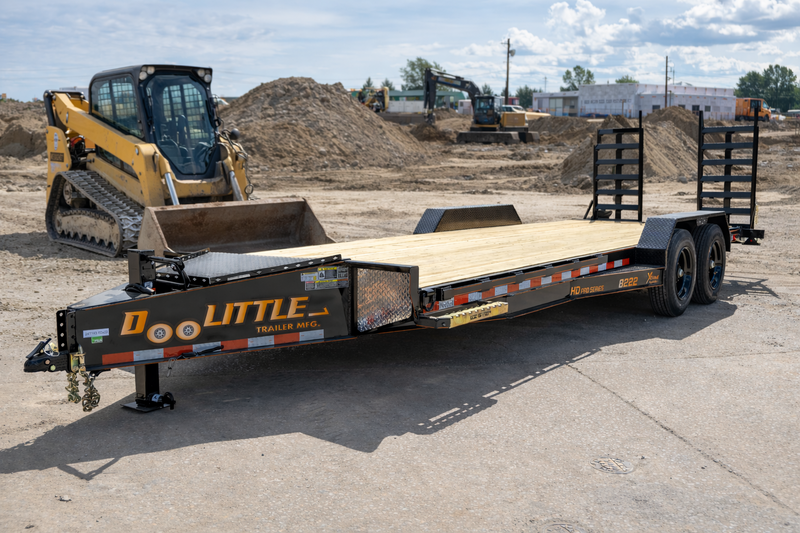

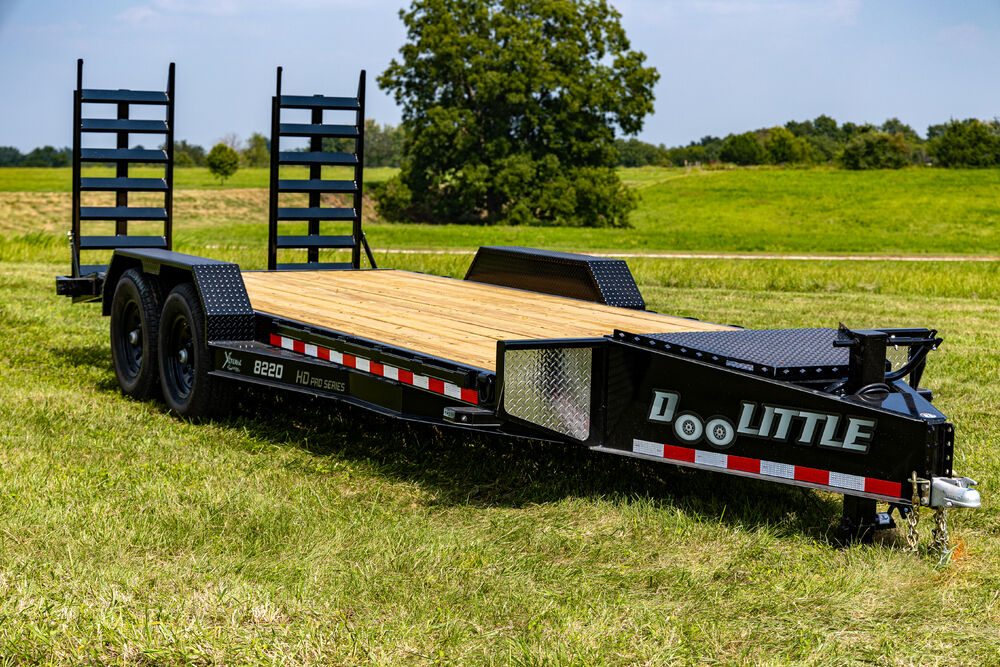

The Xtreme by Doolittle series is the go-to choice for heavy-duty hauling needs. With tandem axle flatbeds customized with deluxe components, it's designed to excel in extreme long-haul situations. Whether you're transporting heavy machinery, construction materials, or other sizable loads, these trailers are built to handle the toughest challenges of long-distance hauling. With the Xtreme series, you can trust in the durability and reliability needed for your most demanding transportation tasks.
Key Features
- - **4 Heavy Duty D-Rings:**
- Secure your cargo with confidence using four heavy-duty D-rings, providing robust anchor points for securing heavy loads during transport, ensuring stability and safety on the road.
- - **Extra Wide Flip-up Ramps:**
- Simplify loading and unloading operations with extra-wide flip-up ramps, offering ample clearance and easy access for a variety of vehicles and equipment, ensuring efficient cargo handling with minimal effort.
- - **Wrap Tongue w/ Step to Deck:**
- Enhance durability and accessibility with a wrap tongue featuring a step to the deck, providing sturdy support and convenient entry to the trailer deck, ensuring ease of use and safety during loading and unloading activities.
- - **EZ Steps:**
- Facilitate safe and easy access to your trailer with EZ steps, strategically placed for convenient entry and exit, ensuring enhanced accessibility and safety during loading and unloading operations.
- - **LED Lights:**
- Illuminate your surroundings with energy-efficient LED lights, offering bright and reliable visibility for safer travels, day or night, while reducing power consumption for added efficiency and durability.
- - **Removable 12k Jack on 14k Models:**
- Customize your setup with a removable 12k jack on 14k models, providing versatile support and convenience for hitching and unhitching operations, ensuring efficient setup and teardown processes for your trailer.
Standard Features
- 82″ Deck Width (14K)
- 84″ Deck Width (7K & 10K)
- Colors: Black, Red and Grey
- Heavy Duty Diamond Plate Teardrop Fenders
- 12K Removable Jack on 14K
- 7K Removable Jack on 10K
- 2k Removable Jack on 7K
- 2′ Wood Dove
- 4 Heavy Duty D-Rings
- LED Lights
- Adjustable 2 5/16″ Coupler
- 27″ Removable Safety Chains w Weather Hangers
- Fabricated Fender Gussets (Front & Back)
- 2″ Treated Pine Floor
- 6″ Front Pipe Bump Rail
- Floor Double Screwed Every 4′
- Break-A-Way Switch With Battery
- Diamond Plate Step To Deck On Each Side
- E-Z Lube Hubs
- White Spoke Wheels
- 7 Way RV Plug
- Acid Etching Phosphate Wash System
- Deburred and Hand Prepped Before Painting
- Stake Pocket Tie Downs
- Slipper Spring Suspension or 14K
- EZ Steps
- Finish is a 2 Component Epoxy Primer and 2 Component Polyurethane Paint
Trailer Options
Expand
Close All
Miscellaneous
- No Dove CF/Xtreme
- No Dove No Ramps
- Coupler, Adjustable (Pintel Eye or Cast Auto-Lock 2 5/16”)
- Heavy Duty D-Rings
- Floor, Oak Upgrade per Ln Ft.
- Floor, Steel 1/8” Diamond Plate Includes 12” O.C. Crossmembers Per Ln Ft.
- Gooseneck 12” X 14Lb. I-Beam (Includes Spare Tire, Lockable Toolbox & 2- 12K Drop Leg Jacks)
- Jack Upgrade, Adjustable Dropleg (7K in lieu of 2K) Bolt On
- Jack Upgrade, Adjustable Dropleg (10 K in lieu of 7K) Bolt On
- Ramps, 5’ Heavy Duty Spring Assist w/ Ramp Legs (7K Upgrade Only)
- Ramps, Heavy Duty Self Store (10K & 14K Only, in lieu of Stand Up) (Includes 2 - 5K Front Crank Flip up Rear Stablizer Jacks)
- 2 - 5K Front Crank Flip up Rear Stabilzer Jacks on 7K ONLY
- Rub Rail, 3/8” w/ Additional Stake Pockets per Ln. ft.(Standard on XT)
- 10” Drive over Fenders 14k Only
- 102” Wide w/ Super Duty Cleated Drive Over Fenders Per Lin. Ft. (Xtreme ONLY)
- 102” Wide w/ Super Duty Cleated Drive Over Fenders Per Lin. Ft. (CF ONLY)
- 12” Pipetop Rail Front & Sides (Per Lin. Ft.)
- 12” Pipetop Rail Front & Sides Mesh (Per Lin. Ft.)
- Upgrade to 40” Wide Ramps (Includes Mesh on Ramps)
- Tongue, per 1 ft. longer 14K ONLY
- Tongue, per 1 ft. longer Includes Adj. Coupler on 7&10K ONLY
- Dual 10K Jack Upgrade (In Lieu of Single 10K)
- Removable Fenders (No Tools Required)
- 2’ Steel Dove w/ Traction Bars
- Self Cleaning Dove CF ONLY
- Fork Holders 2 - 3” x 6” Rectangular Tube, Lockable (Either Side)
- Winch, 8,000lbs Installed with Battery Includes Solar Charger
- Winch, 12,000lbs Installed with Battery Includes Solar Charger
- Winch, 15,000lbs Installed with Battery Includes Solar Charger
- Winch Cable Wiring & Winch Plate (Winch NOT INCLUDED)
- Winch Plate
- Built in Tongue Tool Box, w. Gas Shock Assist, Lockable
- 20’ Tilt Option
Axle Upgrades
- Brake, Double Electric 7K
- Brake, Double Electric 10K
- Tri-Axle Upgrade (Upgrade Available on 14K Only-Includes 8” Main Frame &12” o.c. Crossmembers.)
- Brake Surge 7K Single
- Brake Surge 7K Double
- Brake Surge 10K Single
- Brake Surge 10K Double
- Brake Surge 14K Double
- 16K Upgrade (In Lieu of 14K) Includes 17.5 Tires & 8” Frame (GT ONLY)
- 16K Upgrade (In Lieu of 14K) Includes 17.5 Tires & 8” Frame (Xtreme ONLY)
Tires
- Spare Tire ST205/75R-15” w/ Wheel
- Spare Tire ST225/75R-15” w/ Wheel
- Spare Tire ST235/80R-16” w/ Wheel
- Spare Tire ST215/75R-17.5” w/ Wheel 16 Ply
TOUGHER THAN THE REST
At Doolittle Trailers, we understand the importance of durability and longevity when it comes to your trailer's finish. That's why we go the extra mile to ensure that our trailers are prepped and finished with top-quality materials that are built to last.
Each Doolittle trailer is prepped with a two-part Epoxy Primer, providing a strong foundation for the paint to adhere to. We then apply a two-part Polyurethane Paint finish, which has been proven to be more durable than traditional powder coat finishes. This combination of primer and paint not only enhances the appearance of your trailer but also provides superior protection against the elements, abrasion, and corrosion.
With our advanced painting process, you can trust that your Doolittle Trailer is built to handle whatever you throw at it. Whether you're hauling heavy equipment, landscaping materials, or recreational gear, our trailers are tough enough to stand the test of time, ensuring that they look great and perform reliably for years to come.
Each Doolittle trailer is prepped with a two-part Epoxy Primer, providing a strong foundation for the paint to adhere to. We then apply a two-part Polyurethane Paint finish, which has been proven to be more durable than traditional powder coat finishes. This combination of primer and paint not only enhances the appearance of your trailer but also provides superior protection against the elements, abrasion, and corrosion.
With our advanced painting process, you can trust that your Doolittle Trailer is built to handle whatever you throw at it. Whether you're hauling heavy equipment, landscaping materials, or recreational gear, our trailers are tough enough to stand the test of time, ensuring that they look great and perform reliably for years to come.
